Complete Guide to Penetration Testing

Executive Summary

---

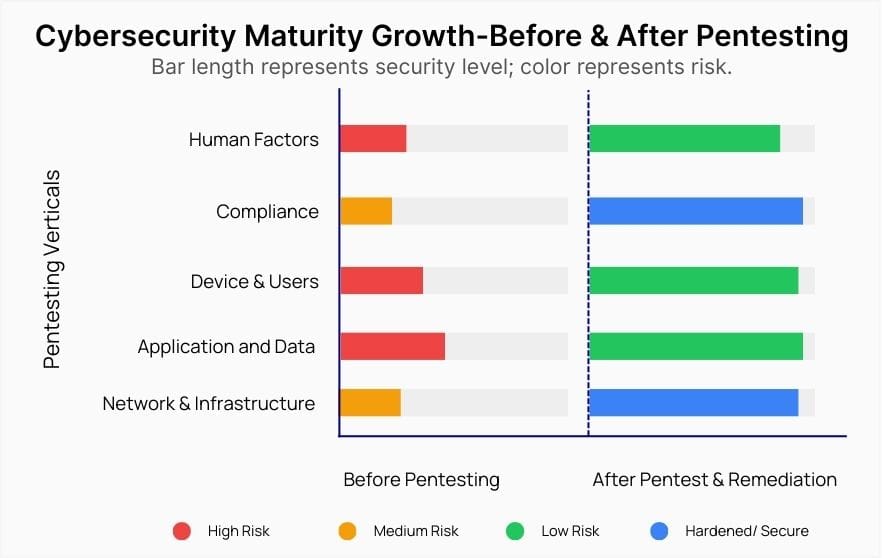

The Strategic Imperative of Pentesting Amid Pervasive Cyber Risk

For the modern Chief Information Security Officer (CISO), the primary challenge is to move beyond compliance-driven metrics and provide tangible assurance of the organization's cyber resilience. Penetration testing is the most effective instrument for this, offering empirical, evidence-based data on the true effectiveness of security controls against a determined attacker.

This allows CISOs to quantify risk in business terms, justify security investments with objective findings, and strategically prioritize resources on the vulnerabilities that pose the greatest threat.

Ultimately, a mature pentesting program equips the CISO to raise the security conversation from a technical discussion to a strategic dialogue on business enablement and risk management.

Consequently, the conversation around cybersecurity has irrevocably shifted from the server room to the boardroom, becoming a discussion of business resilience, enterprise risk management, and strategic enablement.

Adversaries, from nation-state actors to cybercriminal syndicates, now operate with commercial precision, targeting not just data for exfiltration but critical operational processes for disruption. In this context, a passive or purely defensive security posture is untenable.

True cyber resilience, the ability to anticipate, withstand, and recover from cyber-attacks, demands a proactive and adversarial approach to validating defenses. This is the modern mandate for Penetration Testing ("pentesting").

Leadership should govern penetration testing not as a sporadic technical audit, but as an integrated program that quantifies risk, validates security investments, and functions as a competitive differentiator.

Redefining Penetration Testing for the Modern Boardroom

For leadership to effectively govern penetration testing, it is essential to move beyond the outdated perception of the practice as mere "ethical hacking." A mature program is a highly structured, goal-oriented discipline that provides critical business intelligence.

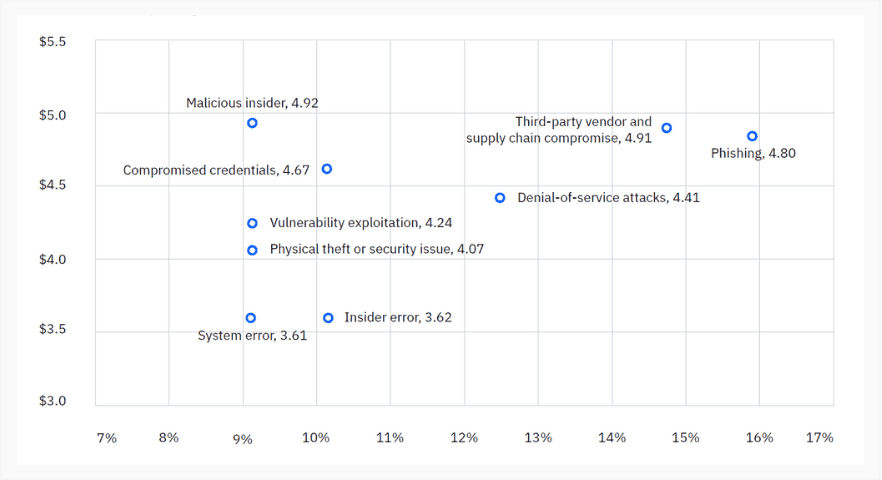

Using Penetration Testing to Quantify Business Risk

A common misconception is to equate penetration testing with automated vulnerability scanning. An automated scanner is an inventory tool that identifies potential, theoretical weaknesses, often producing a high volume of findings that lack business context.

A professional penetration test, by contrast, is a human-led, intelligence-driven simulation of a genuine attack. It focuses on the exploitability and business impact of vulnerabilities by chaining them together to achieve a high-impact business objective, such as compromising a customer database or halting a manufacturing process.

The deliverable from a mature pentesting engagement is a strategic report that translates technical findings into the language of business risk.

This strategic translation is what distinguishes a mature penetration test from a simple vulnerability scan. Consider the difference in impact between a raw technical finding and its contextualized business risk:

Technical Finding: "An SQL injection vulnerability was identified in the e-commerce platform's API."

Business Risk Translation: "This vulnerability allows an attacker to bypass authentication and access the entire customer database, including personal information and order histories. The potential impact includes a direct violation of GDPR and CCPA, leading to regulatory fines of up to 4% of global revenue, significant brand damage, and a projected loss of customer trust."

This translation raises pentesting from a simple IT task to a vital component of the Enterprise Risk Management (ERM) framework.

Pentesting the evolving attack surfaces

The effectiveness of a pentesting program is contingent upon its ability to cover the full spectrum of an organization's modern attack surface. Executive oversight must ensure that testing programs dynamically evolve to address these evolving attack surfaces:

• Artificial Intelligence (AI) and Large Language Models (LLMs): The rapid integration of AI into core business processes has created a novel attack surface. Pentesting for AI systems must address unique vulnerabilities like training data poisoning (corrupting a model to produce flawed business intelligence), prompt injection (tricking an LLM into divulging proprietary data), and model theft. A compromise of these systems represents a direct threat to strategic decision-making.
• Cloud and Hybrid Environments: The vast majority of cloud breaches stem from customer-side misconfigurations, insecure APIs, and overly permissive identity and access management (IAM) policies. Penetration testing in the cloud is essential for validating that the organization's configurations are secure and that data remains protected across complex, multi-cloud ecosystems.
• Operational Technology (OT) and the Internet of Things (IoT): For industrial sectors, the convergence of IT and OT has exposed previously isolated control systems. A successful attack in this domain can have catastrophic cyber-physical consequences, including production line shutdowns, critical infrastructure failure, and threats to human safety.

A recent study (IBM Security Breach report 2025) found that 13% of organizations experienced a security breach originating from an AI model or application. Critically, 97% of those affected organizations conceded that they lacked proper AI access controls. This highlights that inadequate access control is a primary contributing factor in the majority of AI-related security incidents.

Moving Beyond Point-in-Time Assessments

Cybersecurity is not a state to be achieved, but a continuous process to be managed. This directly applies to penetration testing, where a "one-and-done" mentality creates a dangerous illusion of security.

Why One-Off Tests Become Obsolete

An organization's attack surface is in a constant state of flux. Every new line of code, new employee, or system update introduces the potential for new vulnerabilities. This "security drift" means that the findings of a penetration test conducted even six months ago may no longer be relevant.

Therefore, leadership must champion the transition from infrequent, ad-hoc tests to a formal, programmatic approach. This involves establishing a risk-based cadence where the most critical assets ("crown jewels") are tested frequently (e.g., quarterly), while less critical systems are assessed annually.

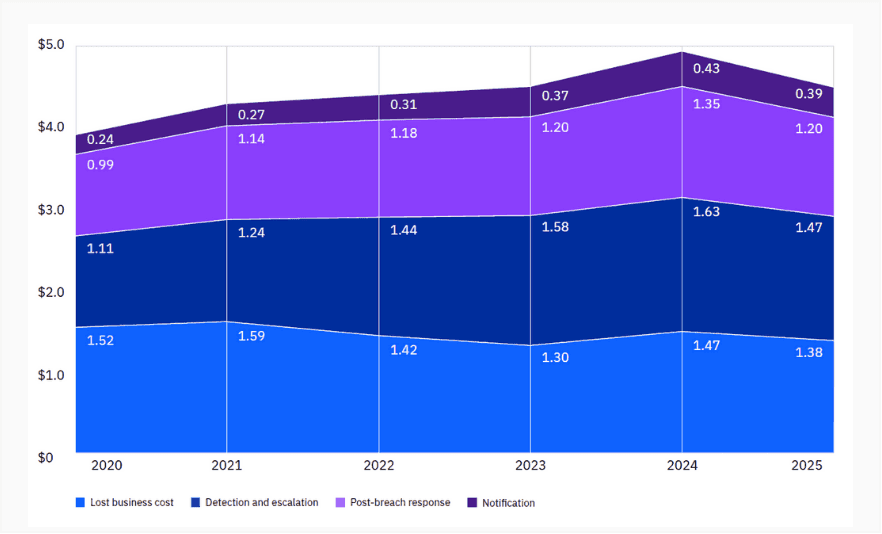

Turning Security into a Selling Point

Many regulatory frameworks, such as PCI-DSS, HIPAA, and SOC 2, mandate penetration testing. However, treating testing as a mere compliance checkbox is a missed strategic opportunity.

Leading organizations use their reliable and continuous testing programs as a proactive tool to build trust and gain a competitive edge. Demonstrating a mature security posture through independent validation becomes a powerful selling point, shortening sales cycles and solidifying brand reputation as a trustworthy custodian of client data.

Driving Value Through a Governance Framework

To ensure the penetration testing program delivers maximum strategic value, the board and senior executive team must provide effective oversight through a clear governance framework.

Communicating Value to Secure Sponsorship

Convincing the board requires framing penetration testing not as a technical expense but as a fundamental exercise in corporate governance and risk management. This investment is a critical act of due diligence, providing the board with assurance that management is taking proactive steps to protect the company’s assets.

Presenting the program in the context of the board's fiduciary duty to protect shareholder value from the clear and present danger of a cyber incident is paramount for securing executive sponsorship. This proactive validation answers the crucial question the board must ask: "How would we fare in a real-world attack?"

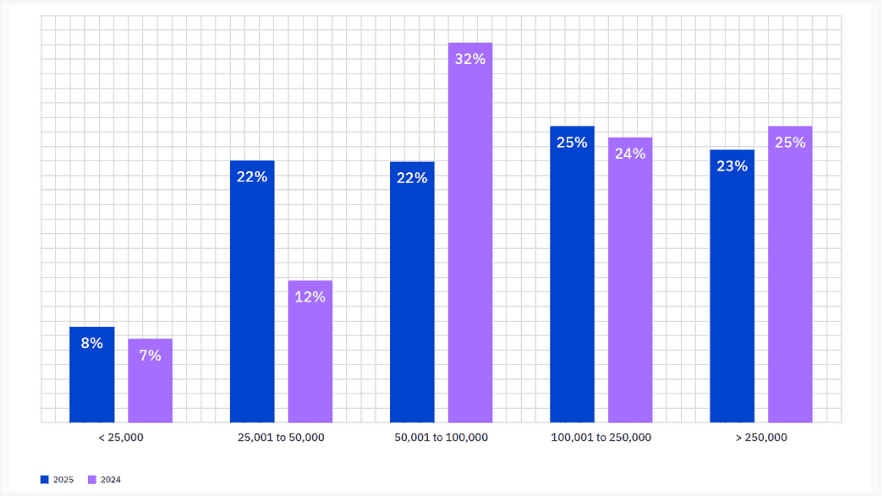

Measuring the ROI in Cost Avoidance

The ROI of penetration testing is overwhelmingly measured in cost avoidance. A proactive testing program is a predictable operational expense that directly mitigates the risk of incurring unpredictable and exponentially larger costs associated with a data breach.

These avoided costs include crippling regulatory fines, extensive incident response fees, legal settlements, and lasting damage to brand equity. The investment in a continuous testing program is minuscule compared to the multi-million dollar financial impact of a single major incident.

In essence, penetration testing is a strategic investment that functions like an insurance policy, dramatically reducing the probability of a catastrophic financial and reputational loss.

Principle 1 - Define Business-Centric Objectives and Scope

The leadership must ensure every pentesting engagement begins with a clear definition of its business purpose. The scope should be directly tied to a specific risk scenario, such as securing a new product launch, simulating a malicious insider threat to test internal controls, or validating defenses against a specific ransomware group targeting the industry. A clearly defined objective ensures the test provides actionable answers to the business's most pressing security questions.

Principle 2 - Vet Partners and Measure Performance

The value of a penetration test is entirely dependent on the quality of the provider. The board should mandate a rigorous due diligence process for selecting partners, evaluating them on criteria such as industry-specific expertise, tester certifications (e.g., OSCP, CREST), and their ability to communicate findings in the context of business risk.

The board should also require the CISO to report on clear Key Performance Indicators (KPIs) for the program, including trends in the number of critical vulnerabilities discovered and the Mean Time to Remediate (MTTR).

Principle 3 - Integrate Findings into Enterprise Risk

The outputs of the penetration testing program must not remain siloed within IT. The CISO must be responsible for aggregating the most critical findings and presenting them to the audit and risk committee. These findings should be formally logged in the corporate risk register, with assigned ownership and remediation plans. This integration ensures that cybersecurity risk is managed with the same level of rigor and executive visibility as financial, operational, and legal risks.

Key Takeaways for Modern Leadership

Penetration testing has evolved far beyond its technical origins. It is now an essential instrument of corporate governance and a direct enabler of business strategy. By embracing a proactive, continuous, and business-aligned approach, leadership can use this discipline to do more than just manage threats. It can build a foundation of digital trust, safeguard shareholder value, and enable the organization to innovate and thrive securely in an increasingly hostile digital world. The stewardship of this function is a core responsibility of modern executive leadership.

Introduction to Penetration Testing

---

Originally developed to safeguard military computer systems in the 1960s and 70s, the practice of penetration testing has evolved alongside technology and the expanding cyberthreat environment. It now covers a vast and growing attack surfaces. Understanding how to apply this practice is essential for protecting modern business operations.

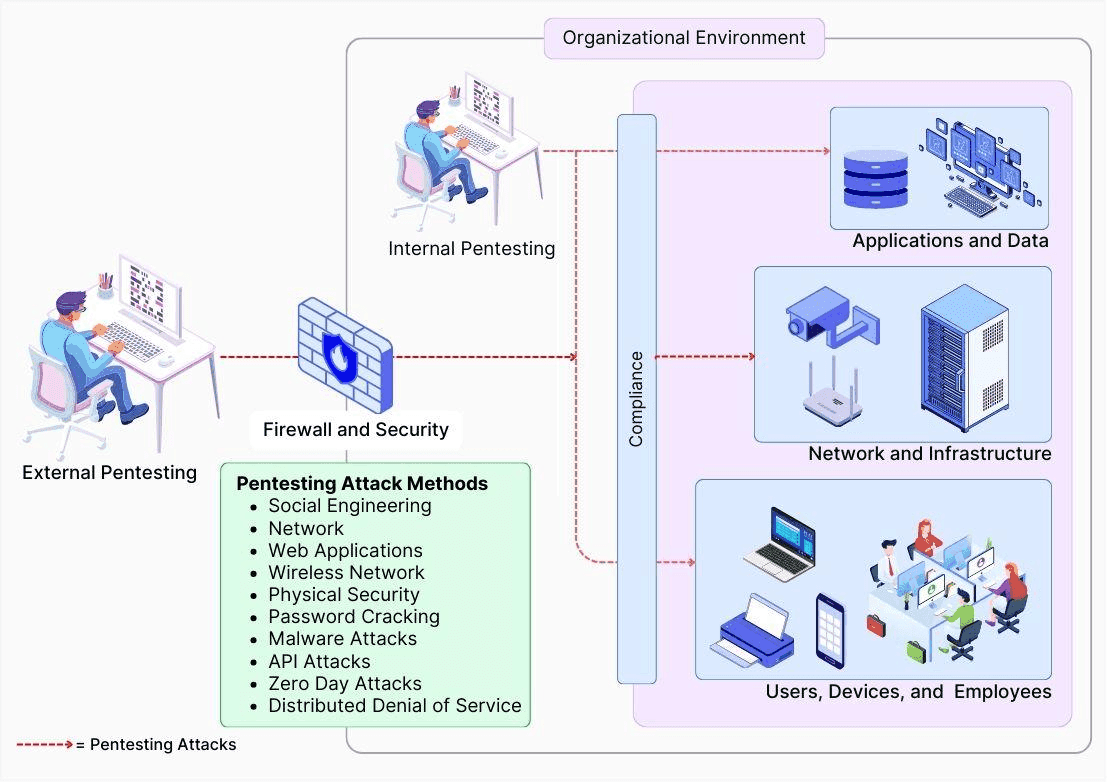

What is Penetration Testing?

Penetration Testing, often called "Pentesting," is a security assessment that constitutes a simulated attack on a computer system, network, or application to identify vulnerabilities that a malicious actor could exploit. By actively probing a system's defenses, it aims to reveal weak spots before they can be used to an organization's disadvantage.

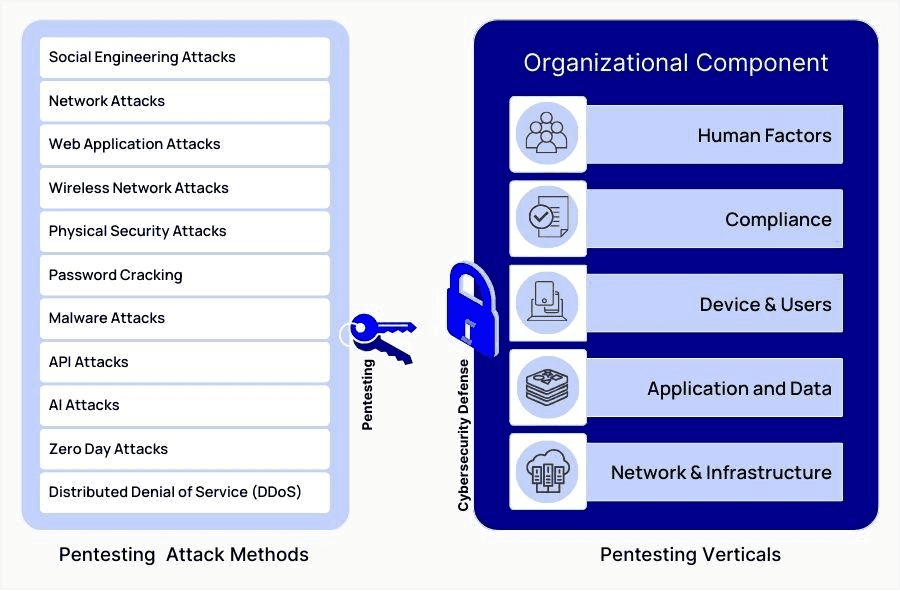

To understand the concept, imagine an attack surface as a fortified structure, such as a house. A penetration test is akin to hiring a security expert to systematically attempt to breach the house, not to cause harm or theft, but to find and document all security vulnerabilities, like a faulty window latch or a weak door.

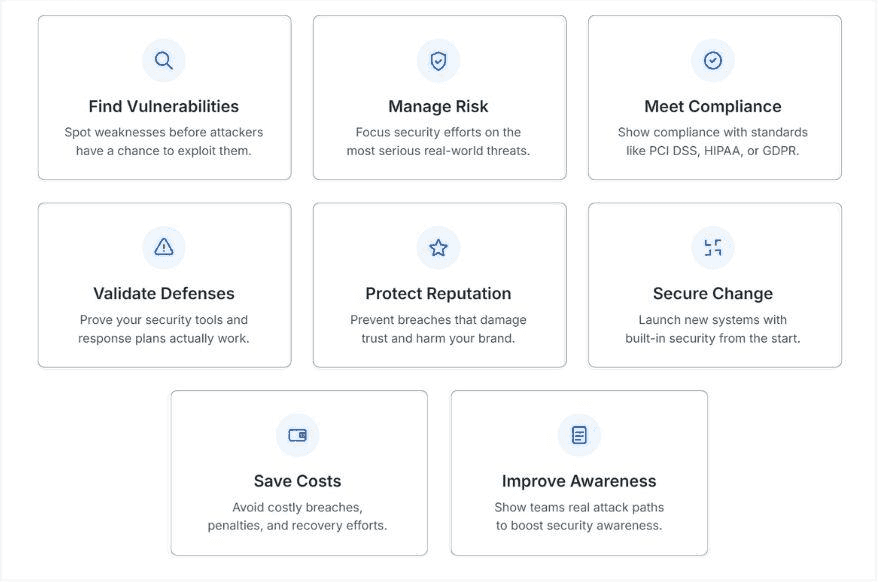

Objectives of Penetration Testing

The primary objective of a penetration test is to identify weak points in a system's defenses, effectively 'penetrating' security controls to gain access or provoke unintended behaviors. The information gathered is then used to achieve several key business outcomes:

• Identify and Prioritize Real-World Risks: Pentesting discovers and contextualizes vulnerabilities based on their potential impact on business operations, data, and revenue.
• Validate Security Controls: It tests the effectiveness of existing security investments, from firewalls to employee training, in a real-world scenario.
• Assess Incident Response Readiness: It evaluates how effectively the security team can detect, respond to, and contain a threat.
• Achieve and Maintain Compliance: It provides the necessary documentation and evidence to satisfy the requirements of frameworks like PCI-DSS, HIPAA, and CMMC.

The Crucial Role of Regular Penetration Testing in Cybersecurity

While a single penetration test can achieve the business objectives outlined previously, its value is a snapshot in time that diminishes as your organization and the threat environment evolve.

New code is deployed, systems are reconfigured, and adversaries develop new attack techniques daily, making security assumptions made even six months ago potentially obsolete. For this reason, integrating penetration testing as a regular, recurring element of your cybersecurity strategy is non-negotiable.

Conducting pentesting regularly is the only way to continuously validate your defenses against an ever-changing threat environment. A regular testing program fortifies your organization's resilience, safeguards your brand, ensures compliance, and protects your financial health.

The key benefits of establishing a regular penetration testing program include:

• Proactive Vulnerability Management: Regular testing proactively uncover security vulnerabilities as they emerge from changes in your infrastructure and applications. This shifts the organization from a reactive patching cycle to a proactive risk management model, allowing for timely and prioritized remediation.
• Meeting and Exceeding Compliance Mandates: For many industries, regular penetration testing is a strict regulatory requirement. Standards like PCI-DSS, HIPAA, and CMMC mandate it. Scheduled testing provides the auditable proof of due diligence required to maintain compliance and avoid significant penalties.
• Enabling Data-Driven Risk Management: Consistent testing provides an ongoing view of your risk posture, enabling data-driven decisions on security investments and budget allocation.
• Protecting the Bottom Line: Proactively identifying and fixing vulnerabilities before they are exploited is a direct and substantial form of financial protection against operational downtime, regulatory fines, and legal fees.
• Building Customer and Partner Trust: Regular, independent testing builds customer trust, creating a key brand differentiator in a competitive market.
• Validating Security Team Readiness: Penetration tests simulate real-world attacks to pressure-test your team's incident response, allowing you to refine your response plans and improve overall readiness.

Pentesting Drivers and Targets

---

It is critical to identify the core drivers that make the Penetration testing necessary, whether they are regulatory mandates, risk management goals, or customer demands. Equally important is to identify the technological targets, the specific systems, applications, and infrastructure that constitute the organization's attack surface.

Who requires Penetration Testing?

The question of who needs penetration testing is best answered by the latest threat data. The Verizon 2025 Data Breach Investigations Report (DBIR) reveals that threat actors, largely driven by financial motives, are targeting organizations of all sizes across every industry.

Any entity that depends on digital systems, stores valuable data, or provides online services is a potential target. Regular penetration testing helps organizations of all sizes protect their systems, data, and reputation, ensuring business continuity in the face of these persistent threats.

The need is universal, though the specific risks may vary by sector:

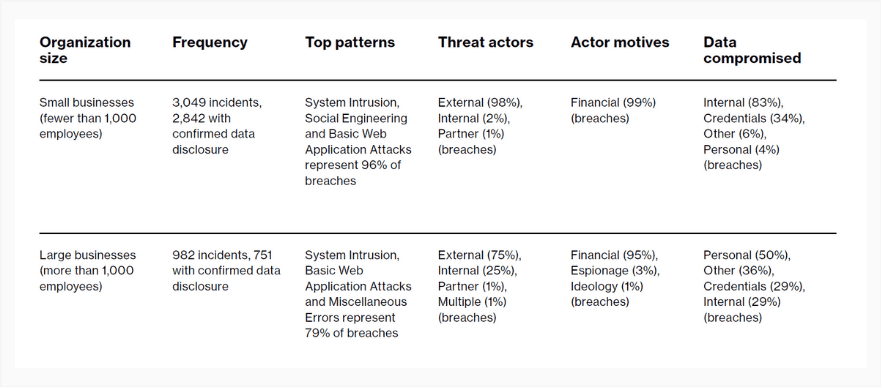

• Businesses of All Sizes: The DBIR confirms that both small and large businesses are firmly in the crosshairs of cybercriminals. SMBs (Small and Medium-sized businesses) are often targeted for their perceived weaker defenses, while large corporations are targeted for their higher-value assets. Because nearly every business today relies on technology, this dependency makes them a target.
• Financial Institutions: Financial organizations that hold sensitive financial information are perennial targets. Regular penetration testing is critical not only for identifying weaknesses but also for meeting the strict compliance requirements of regulations like PCI-DSS.
• Healthcare Institutions: Healthcare entities hold highly sensitive and valuable patient data (ePHI). Penetration testing helps these organizations identify security gaps to protect patient information, maintain HIPAA compliance, and ensure the integrity of their services.
• E-commerce Platforms: Businesses conducting online transactions and storing customer payment data must ensure the strong security of their entire transaction lifecycle. Penetration testing helps identify vulnerabilities in their payment systems, customer databases, and web applications that could be exploited by attackers.
• Government Agencies: Federal and State agencies hold sensitive information and are high-value targets for nation-state actors and other threat groups. Pentesting is essential to safeguard national interests by protecting Controlled Unclassified Information (CUI) and other critical data.
• IT and Tech Companies: For technology companies, including software and app developers, the security of their products and services are paramount. Regular pentesting is a crucial step to ensure their product is secure and safe to use. Implementing strong security is a critical factor in market adoption and achieving sales goals.
• AI and SaaS Providers: With the rapid proliferation of AI and AI-powered SaaS products, security has become a critical market differentiator. These companies are not just targets themselves. Their products can have unique vulnerabilities in their AI models and data pipelines. Penetration testing is essential to secure their platforms, build customer trust, and prevent their technology from being exploited, ensuring their product is a safe and reliable business tool for their clients.
• Educational Institutions: Universities and colleges store vast amounts of personal information and valuable intellectual property, which can be lucrative for attackers. Pentesting helps these institutions safeguard their students, faculty, and research.

What can be Penetration tested?

The scope of penetration testing is extensive, varying based on an organization's size, industry, and the complexity of its IT systems.

Key areas that require penetration testing include:

• Web Applications: As web applications are often a primary target, pentesting can identify critical vulnerabilities such as SQL injection, authentication bypass, and cross-site scripting.
• Mobile Applications: Mobile apps that handle sensitive data are attractive targets. Penetration testing can reveal vulnerabilities like improper session handling, weak encryption, or insecure data storage.
• APIs: Exposed APIs can be a direct gateway to sensitive data. Pentesting helps discover weaknesses related to improper access controls, rate limiting, and injection attacks.
• Network Infrastructure: Thorough penetration testing of firewalls, routers, and servers is necessary to identify flaws that could allow an intruder to access the entire corporate network.
• Cloud Infrastructure: Cloud environments (like AWS, Azure, and GCP) hold sensitive data and critical applications. Pentesting is essential to identify misconfigurations, excessive permissions, and other vulnerabilities that are unique to cloud services.
• AI and LLM Systems: The rapid integration of Artificial Intelligence (AI) and Large Language Models (LLMs) into core business processes creates a novel and complex attack surface. Penetration testing for these systems focuses on the entire AI lifecycle, from the supply chain and training data to the model's operational behavior. It evaluates unique, high-impact vulnerabilities such as prompt injection, training data poisoning, and model theft, which can lead to flawed business decisions, sensitive data disclosure, and significant reputational damage.
• Wireless Networks: Vulnerabilities in wireless networks, such as misconfigured access points or weak encryption, can grant intruders a foothold into the corporate network. Pentesting can identify and validate these weaknesses.
• Physical Infrastructure: To protect secure facilities like data centers from physical breaches, pentesting can assess the effectiveness of security controls like surveillance systems, alarms, and access control systems against lock picking or bypassing techniques.
• Employees (via Social Engineering): People can be the weakest link in security. Pentesting can gauge employee awareness and vulnerability to tactics such as phishing, baiting, and pretexting to test human defenses.
• Operational Technology (OT) & Internet of Things (IoT): Industrial Control Systems (ICS), SCADA, and the vast network of IoT/IIoT devices are integral to modern infrastructure in sectors like manufacturing, energy, and healthcare. Penetration testing is critical for these connected systems to prevent cyber-attacks that could cause significant physical disruption and safety risks.

Legal Requirements for Penetration Testing

---

Legal Requirements and Compliance for Penetration Testing

Many industry regulations and compliance frameworks now mandate periodic penetration tests as a core requirement for protecting sensitive data. For organizations in regulated sectors, these tests are not optional. They are a condition of doing business. Key examples include:

• HIPAA: Healthcare organizations must conduct regular security risk analyses under the Health Insurance Portability and Accountability Act. Penetration testing is a critical method for validating security controls and protecting patient data.
• CMMC Level 2: Defense contractors handling Controlled Unclassified Information (CUI) are required to undergo penetration testing to achieve Cybersecurity Maturity Model Certification (CMMC) at Level 2.
• SOC 2: Service providers, particularly SaaS companies, rely on penetration testing to validate their security controls for a SOC 2 attestation report, which is often essential for enterprise sales and building customer trust.
• GDPR: Companies handling the data of EU citizens must demonstrate "appropriate technical and organizational measures" to protect it. Penetration testing serves as a key part of this due diligence.

Beyond any specific mandate, proactively identifying and rectifying flaws is always more cost-effective than absorbing the hefty fines and reputational damage that follow a breach.

Penetration tests are also strongly recommended at crucial business junctures, such as after a significant system implementation or a major software update. And if your company has experienced and remediated a breach, a follow-up test is crucial to ensure all entry points have been secured against recurring attacks.

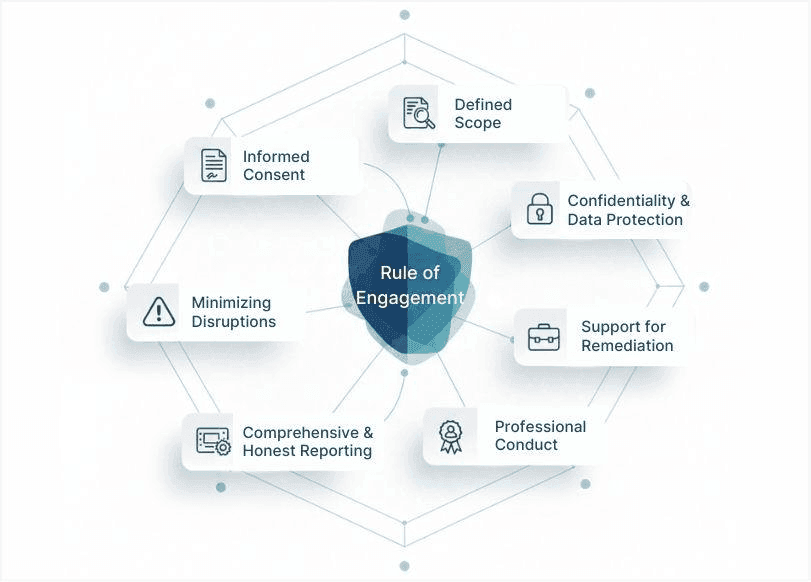

Rules of Engagement for Penetration Testing

Before initiating the penetration testing process establishing a clear set of guidelines and ethical standards can help ensure that the process is effective, legal, and beneficial to enhancing the organization's security posture.

Here are the seven principles of Ethical Penetration Testing that must be observed for any pentesting engagement:

• Informed Consent: Testing without permission is illegal, unethical, and can harm reputations. Pentesting necessitates an informed consent, encompassing awareness of methods and risks.
• Defined Scope: A clearly defined scope ensures that penetration testers only test the systems and data that have been authorized by the client preventing testers from violating the client's privacy and causing damage. It also avoids misunderstanding.
• Confidentiality and Data Protection: During a penetration test, sensitive and confidential information must be handled responsibly as unauthorized use or disclosure of sensitive data violates ethical and legal standards. Testers should have appropriate mechanisms to protect data during and after the test.
• Minimizing Disruptions: While some disruption might be unavoidable during a penetration test, testers are ethically obligated to minimize the impact on operations. The testing exercise should be planned and executed to avoid unnecessary downtime or business interruptions. Adverse impacts on business operations can lead to financial losses, decreased productivity, and damage to the organization's reputation.
• Thorough and Honest Reporting: Ethical testers should report all discovered vulnerabilities accurately, irrespective of their severity. Withholding information about a vulnerability is unethical and exposes the organization to potential cyber threats.
• Support for Remediation: After completing the penetration test and reporting findings, ethical testers should offer clear recommendations and support for remediating identified vulnerabilities. It could involve providing advice on best practices, suggesting security enhancements, and helping to prioritize remediation tasks based on the severity of risks.
• Professional Conduct: Throughout the testing process, penetration testers must maintain high professionalism. It includes respecting the client's business, maintaining neutrality, and avoiding behaviors that could exploit discovered vulnerabilities for personal gain.

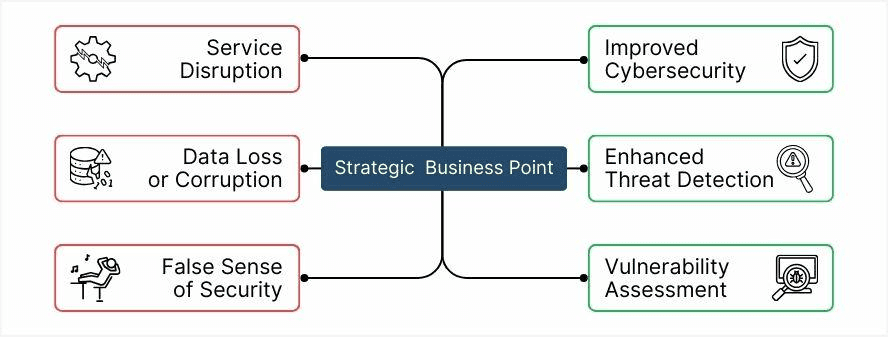

The Risks Associated with Penetration Testing

---

Penetration testing is vital to cybersecurity, though it's not without potential risks.Pentesting process can inadvertently disrupt operations or cause system damage. Even with thorough planning, unexpected problems could emerge during the testing, potentially affecting productivity, causing system downtime, or damaging systems or data. These risks are more prominent when testing production systems crucial to business operations.

These risks can be significantly minimized through careful planning, explicitly defining in-scope and out-of-scope items and through risk mitigation techniques.

Considerations for Testing Production Systems

Penetration testing in production systems faces distinct challenges due to the systems’ sensitivity to disruptions and complexity. Erroneously conducted tests can cause production shutdowns, leading to significant financial losses. The intricacy of these systems may unveil unforeseen interdependencies during testing. Production systems may also be subjected to regulatory constraints affecting the testing scope.

Securing production systems through well-managed penetration testing is critical, given the potential for substantial business impacts. It’s important to isolate systems from unsecured networks using proxy defenses or air-gapping strategies.

Thorough planning, including defining testing scope, preparing for disruptions, and engaging stakeholders, is essential to mitigate risks and maximize the benefits of identifying and rectifying system vulnerabilities.

Key Pentesting Frameworks and Procedures

---

A professional penetration test is not an improvised activity but a highly structured discipline guided by a combination of key components. To achieve a reliable and thorough assessment, skilled professionals rely on established industry standards, proven operational procedures, and strategic frameworks that model adversarial behavior.

Understanding how these elements work together is essential for evaluating the quality and thoroughness of a penetration test.

Penetration Testing Standards

Many standardized testing methodologies have surfaced in the penetration testing realm over the years. While some were created to address specific requirements, like the PCI-DSS Penetration Testing Guidance documents, others aim to standardize and bring consistency to testing processes.

Some widely recognized methodologies include the Open Source Security Testing Methodology Manual (OSSTMM) and the Penetration Testing Execution Standard (PTES). Several groups like OWASP and NIST have also compiled their own guides. Though slight differences exist among these methodologies, they generally share a similar foundation.

1. Penetration Testing Execution Standard (PTES)
   PTES presents a detailed technical guideline that digs into the attacker's mindset. It covers not only information gathering and exploit-finding processes but also techniques for evading modern security controls like Endpoint Detection and Response (EDR). The guide also offers explanations of various potential exploits.
2. OWASP (Open Web Application Security Project)
   The Open Web Application Security Project (OWASP) provides some of the most influential and widely adopted standards in the industry, centered around its famous 'Top 10' lists. These documents are more than just checklists. They are strategic tools that guide effective penetration testing.
   Two of the most critical OWASP standards today are:
   The OWASP Top 10 for Web Applications: This is the gold standard for web security. It guides testers in looking for critical risks like Injection Flaws, Broken Access Control, and Cryptographic Failures, which are leading causes of data breaches in web applications.
   The OWASP Top 10 for Large Language Model (LLM) Applications: As companies rapidly adopt AI, this new standard has become essential. It directs testing efforts toward the unique vulnerabilities in AI systems, such as Prompt Injection, Training Data Poisoning, and Model Theft, that traditional security standards do not cover.
3. Open-Source Security Testing Methodology Manual (OSSTMM}
   OSSTMM is known for its focus on quantifiable results. It defines specific metrics to gauge a system's security based on discovered vulnerabilities, their complexity, and their potential impact on business operations, providing a measurable assessment of risk.

Penetration Testing Procedures

Penetration tests usually progress through seven distinct stages. However, some practitioners may combine or divide steps further for specific scenarios.

1. Information Gathering and Scoping: The initial step, information gathering, and scoping, forms a critical foundation for the organization and the penetration testing team. In this phase, both parties convene to outline requirements, goals, and expectations. The penetration team then gathers essential information about the company's infrastructure, applications, and other systems slated for testing. This step ensures clarity, preventing miscommunication or confusion later.
2. Passive Reconnaissance: The second stage, passive reconnaissance, can consume the most time, depending on the test type. The client provides much of the reconnaissance in a white box test, with the penetration testing team filling in the gaps. In contrast, a black box test aims to discover how much information can be gathered about the company using open- source intelligence or without physical site or network access.
3. Footprinting: The third stage, footprinting, often merges with reconnaissance. The testers make direct contact with a client to investigate their network. Decisions begin from the attacker's perspective, tailoring attacks to the client's needs and attack surface. This stage still primarily involves intelligence gathering, but testers must decide on their scans' intensity and whether using a fully automated vulnerability scanner is worth it.
4. Analysis: After gathering all the information, testers formulate their attacks based on their discoveries to achieve their goals during the Analysis stage.
5. Exploitation: In the Exploitation stage, the team penetrates the system using identified exploits to gain access to desired files or domain access to verify test success. Testers often install a backdoor at this stage to ensure easy re-entry without exploiting again. If the tester isn't where they want to be in the network, they usually return to scanning and reconnaissance from their new position until they can escalate privileges.
6. Documentation: Documentation is vital throughout the process, especially for the final two stages. Once a tester achieves their goal and has documented their attack chain, they move to the clean-up stage. They remove any accounts they used or created, eliminate any backdoors or created shells, and aim to restore the system to its pre-test state. If any changes cannot be undone, these are reported to the blue team.
7. Reporting: In the final stage, penetration testers share their findings with the client, including a written report, a verbal report, and responses to questions about methodology or resolving vulnerability.

Cyber Kill Chain and Attack Simulations

In Penetration Testing, Cyber Kill Chain and Attack Simulation frameworks are used to understand and simulate cyberattacks, thereby identifying vulnerabilities and fortifying defenses. The concept is derived from the military term "kill chain," which outlines the structure of an attack. In cybersecurity, models like the Lockheed Martin Cyber Kill Chain, the MITRE ATT&CK framework, and MITRE ATLAS have been developed to represent the stages of a cyberattack.

These models offer a systematic approach to comprehending an attacker's tactics, techniques, and procedures (TTPs) and act as guides for simulating cyberattacks in a controlled environment. Pen testers use these frameworks to simulate realistic attacks, with each stage representing a point where an organization's defenses can be tested and strengthened.

1. Lockheed Martin Cyber Kill Chain This foundational framework outlines the seven common stages of an external attack, helping organizations identify vulnerabilities and assess the effectiveness of existing controls. The phases include Reconnaissance, Weaponization, Delivery, Exploitation, Installation, Command & Control, and Actions on Objectives.
2. MITRE ATT&CK (Adversarial Tactics, Techniques & Common Knowledge) This model provides a globally accessible and detailed knowledge base of adversary TTPs based on real-world observations. The ATT&CK framework is more granular than the Cyber Kill Chain and helps organizations understand specific adversary behaviors like Lateral Movement and Privilege Escalation, enabling them to build more targeted defenses.
3. MITRE ATLAS (Adversarial Threat Landscape for AI Systems) As organizations increasingly rely on Artificial Intelligence, a new threat environment has emerged. To address this, MITRE developed ATLAS, a knowledge base of adversary tactics and techniques used specifically against AI-enabled systems. Modeled after the ATT&CK framework, ATLAS is tailored to the unique vulnerabilities of AI, such as Evasion, Poisoning, and Model Theft. For decision-makers, ATLAS is the essential framework for understanding the new playbook of AI-specific attacks.
4. The Unified Kill Chain This model integrates and expands upon previous frameworks to capture the nuanced behaviors of attackers across 18 different attack phases. It provides a more complete view that covers actions from the initial foothold through network propagation to the final action on objectives.

Relevance of Kill Chain Models in Penetration Testing

These models are highly relevant for penetration testing for the following reasons:

• Framework for Assessment: They offer a structured approach to assess vulnerabilities at different stages of an attack.
• Understanding Attacker Tactics: They help penetration testers comprehend and emulate the TTPs of real-world threat actors, including those targeting AI systems.
• Enhancing Defense Mechanisms: By identifying weaknesses at specific attack phases, organizations can bolster their defenses more effectively.
• Reporting and Communication: These frameworks serve as a common language, simplifying discussions about findings and remediation strategies among all stakeholders.
• Evaluating Pen Test Effectiveness: Mapping a test's findings to a kill chain allows an organization to measure the depth of a simulated attack, gauging the real-world efficacy of its security program.

Penetration Testing and other Security Assessment Types

---

Security assessments and testing are critical to a complete Information Security Management System (ISMS). It includes methodologies such as vulnerability assessments, penetration testing, security audits, and Red, Blue, and Purple team exercises.

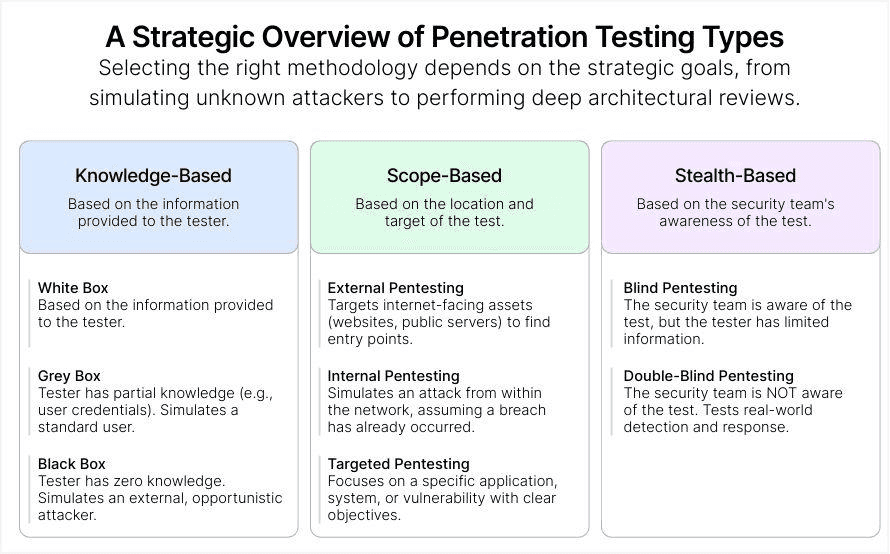

What are the Different Types of Penetration Testing?

Penetration testing varies regarding what is being tested and the information available to the testers. The choice of a specific method depends on your organization's needs or goals, such as budget or the type of system/network you want to be tested.

The level of access and information may vary depending on the client's specific engagement, scope, and authorization.

Exhibit 14: An overview differentiating penetration test types by their unique access levels, testing objectives, and execution methods.

Type of Pentesting	Access Level and Information	What does it test?	How does it test?
White Box Testing	High level of access and information.	Vulnerabilities in systems with full knowledge of their internal workings.	Testers have access to the system or detailed information about its architecture and design. They can perform thorough tests, including source code review, system configuration analysis, and logical vulnerability assessment.
Black Box Testing	Limited access and information, similar to an external attacker.	Simulates real-world attacks by attempting to gain unauthorized access to a network without prior knowledge.	Testers are provided minimal information, such as IP ranges, and attempt to identify vulnerabilities through reconnaissance, scanning, and exploitation techniques.
Gray Box Testing	Moderate access and information, depending on the level of information provided.	Focuses on specific threats or areas of concern while having some knowledge of the system.	Testers are provided partial information about the system's architecture, allowing them to target specific areas of interest. This type of testing can assess targeted threats, logging capabilities, and potential evasion techniques.
External Penetration Testing	Limited access to external-facing systems and information available publicly.	Evaluates the security of systems accessible from the internet, emulating attacks initiated by external hackers.	Testers use various techniques, including social engineering and vulnerability scanning, to identify weaknesses in perimeter defenses, websites, web applications, and networks.
Internal Penetration Testing	High level of access within the internal network, as authorized by the client.	Identifies vulnerabilities within the company's internal network and architecture.	Testers simulate attacks within the network, attempting to exploit weaknesses and gain access to higher-level systems. This type of testing is effective for mitigating insider threats.
Blind Penetration Testing	Limited access and information, similar to an external attacker.	Simulates attacks with minimal information about the target company, similar to black box testing.	Testers have limited information, such as the company name or website URL, and rely solely on their skills to identify vulnerabilities. This type of testing can mimic real-world scenarios where attackers have little knowledge about their targets.
Double-Blind Penetration Testing	Limited access and information, similar to an external attacker.	A secretive engagement where the tester and the organization being tested are unaware of each other's activities.	The tester has no prior information about the target system and conducts the test without knowing the internal network. This type of testing evaluates incident response and the ability to detect and react to unexpected threats.
Targeted Penetration Testing	Access and information depend on the scope and collaboration with the testing party.	Focuses on specific high-risk areas of a company's IT system in collaboration with the testing party.	The test is tailored to assess a specific area of concern, such as critical systems or applications. Testers use a combination of techniques to identify vulnerabilities and potential weaknesses.

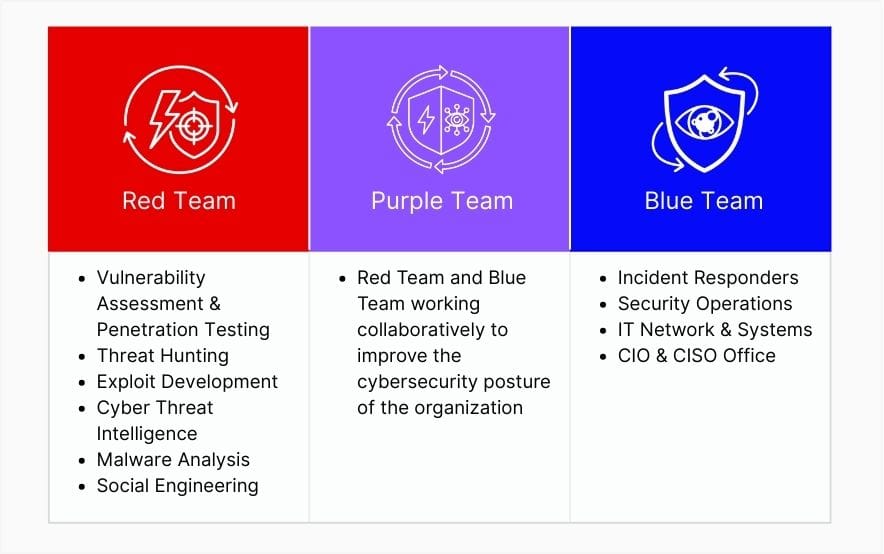

Pentesting vis-a-vis Red, Blue, or Purple Teaming?

Though they share common goals, pentesting, Red, Blue, and Purple teaming differ significantly in approach and focus. Overall, these practices form a continuum within an organization's security lifecycle.

While Penetration testing identifies vulnerabilities, Red teaming tests defenses, Blue teaming strengthens them, and Purple teaming integrates Blue and Red Teaming for a resilient cybersecurity.

Exhibit 16: An overview differentiating penetration test types by their unique access levels, testing objectives, and execution methods.

Parameters	Pentesting	Red Teaming	Blue Teaming	Purple Teaming
Main Focus	Identifying vulnerabilities in a system, application, or network.	Simulating a real-world, full-scale attack to measure an organization’s defenses.	Defending against actual and simulated attacks.	Facilitating cooperation and communication between red and blue teams to improve overall security.
Objective	To discover and document vulnerabilities.	To test how well an organization can withstand an attack.	To detect and respond to threats and continually improve defensive strategies.	To maximize the strengths of both offensive and defensive strategies, promoting better overall security.
Methodology	Uses a variety of tools and techniques to exploit known vulnerabilities.	Uses all available methods to breach, including social engineering and physical penetration.	Implements, maintains, and improves security measures, and educates the workforce about security practices.	Involves a cycle of attacks (red team) and defense (blue team), followed by feedback and improvement.
Duration / Frequency	Often a one-time, goal-oriented exercise.	Periodic thorough evaluations.	A continuous, everyday process.	Typically conducted as periodic exercises, depending on the organization’s needs.
Scope	Usually targets specific systems or applications.	Broad in scope, assessing the organization’s people, processes, and technology.	Covers all aspects of security across the organization.	Encompasses and coordinates the efforts of both red and blue teams.
Outcome	A report detailing vulnerabilities and recommending remediation steps.	A detailed report of the simulated attack, the organization’s response, and areas of improvement.	A safer organization through active threat detection, mitigation, and prevention.	Improved security posture through integrated defensive and offensive strategies.

Difference between Pentesting and Application Security?

Application Security (AppSec) integrates security throughout the software development lifecycle, using practices like secure code reviews and threat modeling to find and fix vulnerabilities in the source code.

While automated tools like firewalls and scanners provide a defensive baseline, they cannot guarantee complete protection, especially for high-risk, internet-facing cloud applications. To address this gap, penetration testing provides crucial validation. It is a simulated, real-world attack where ethical hackers actively exploit weaknesses to uncover the critical vulnerabilities that automated defenses and internal processes inevitably miss.The main distinction between AppSec and Pentesting lies in their focus. AppSec is concerned with building secure applications, whereas Pentesting tests the security of those applications and the broader system.

Exhibit 17: A comparative overview highlighting the key distinctions between Penetration Testing and Application Security (AppSec) across their lifecycle aspects.

Aspect	Penetration Testing	Application Security (AppSec)
Purpose	To identify system, network, or application vulnerabilities by simulating attacks.	To ensure the security of an application throughout its lifecycle, from design and development to deployment and maintenance.
Scope	Focused on the organization's overall infrastructure, including networks, systems, and applications.	Primarily focused on the application layer, covering the security of individual software applications.
Techniques	Involve various types of testing based on information availability (white, black, gray box) and attack origin (internal, external).	Include techniques like Dynamic Application Security Testing (DAST), Static Application Security Testing (SAST), Software Composition Analysis (SCA), and Interactive Application Security Testing (IAST).
Timing	Usually performed at specific intervals or after significant changes to the system or application.	Incorporated throughout the application's lifecycle, starting from the design and development stages.
Role in Cybersecurity	Offensive, aiming to actively find and exploit vulnerabilities to evaluate the system's defense capability.	Defensive, focusing on building secure applications to minimize vulnerabilities and reduce the attack surface.
Benefits	Helps identify vulnerabilities before attackers do, validate security measures, meet regulatory requirements, and prevent potential financial loss.	Helps build secure applications, minimizes software vulnerabilities, improves code quality, and ensures secure use of third-party components.
Team's Perspective	Takes an external perspective, simulating an attacker's approach to uncovering vulnerabilities.	Involves an internal perspective, focusing on secure coding practices, architectural decisions, and component choices.

Selecting the Right Penetration Test

---

Choosing an effective penetration test requires a strategic evaluation of your unique business context. This decision should be informed by several key factors, including your specific technology environment, regulatory compliance obligations, overall risk tolerance, and budget. Often, the most effective testing strategies layer multiple types of tests (such as combining network and application assessments) to gain a complete and realistic view of your organization's security posture.

To achieve this, your organization must first define its requirements clearly. The framework below outlines the key considerations for scoping an effective engagement that aligns with your business objectives.

A Framework for Scoping Your Penetration Test

An effective penetration test is not a one-size-fits-all service. The value of the engagement depends entirely on how well it is scoped to your specific needs. Ethical hacking is as varied as software development. Different firms specialize in cloud infrastructure, hardware, or social engineering. Before engaging a provider, it is crucial to define the following factors:

1. Business and Technology Environment First, identify what you are trying to protect. Consider the nature of your data, the criticality of your systems, and the structure of your infrastructure. For a company managing financial data, network and web application tests are paramount. For an organization migrating to a new cloud environment, a cloud configuration review is vital.

2. Purpose and Objectives Clearly define why you are conducting the test. The motives will directly influence the test's methodology and focus. Common objectives include:

• Validating security controls after a recent security incident.
• Meeting compliance requirements for regulations like PCI-DSS or HIPAA.
• Conducting a periodic, proactive security assessment to manage risk.
• Verifying internal security measures with an independent, external perspective.

3. Compliance and Regulatory Mandates If your organization operates in a regulated industry, compliance will be a primary driver. Standards like PCI-DSS, HIPAA, or CMMC have specific requirements for the type and frequency of penetration testing. These mandates provide a baseline for your testing scope.

4. Risk Tolerance and Budget Your organization's appetite for risk will influence the depth, breadth, and frequency of testing. A company with a low risk tolerance may opt for more frequent and thorough testing. This risk assessment, combined with a clear budget, allows for effective resource allocation and ensures the investment is directed toward the areas of greatest concern.

5. Past Incidents and Known Weaknesses Use historical data to inform the scope. Information about previous breaches or vulnerabilities discovered through internal assessments provides a valuable starting point. This allows the testing team to focus on validating fixes and probing for similar, known weaknesses in your environment.

By clearly defining these considerations, you create a detailed brief that allows you to select the right partner and ensures the final engagement delivers actionable, high-impact results.

Defining Pentesting Scope

A thorough penetration test must cover all potential attack vectors, the pathways an adversary could use to breach your systems. Scoping a test effectively means selecting the right vectors based on your unique technology and business risks. The most common types of vector-based tests include:

• Network Services Testing: Focuses on vulnerabilities in network infrastructure, including firewall configurations, DNS, and email servers. This is a foundational test for any organization with a significant network presence.
• Web Application Testing: Targets flaws in web applications and their underlying servers, such as those in custom-built software or public-facing platforms. This is essential for any business with an online presence.
• Client-Side Testing: Identifies vulnerabilities in software running on user endpoints, such as web browsers or document editors, which could be exploited to gain unauthorized access to internal systems.
• Wireless Network Testing: Scrutinizes Wi-Fi, Bluetooth, and other wireless connections for security weaknesses like weak encryption, rogue access points, or insecure configurations.
• Social Engineering Testing: Tests the resilience of employees against psychological manipulation. This involves simulated attacks like phishing or baiting to assess security awareness and identify weaknesses in human processes.

Beyond selecting what to test (the vectors), it is equally important to define how the test will be conducted. The chosen methodology depends on the amount of information provided to the testers and the overall goals of the engagement, as detailed in the framework below.

Exhibit 18: Selecting the appropriate penetration test type, determined by factors like system access and attack origin, is a fundamental step in tailoring the scope of an assessment.

Pentesting Factors	Pentesting Types	Description
Testing Based on Information Availability	White Box Testing	Testers possess full details about the system, simulating the threat from an insider with extensive system knowledge.
Black Box Testing	Minimal information about the system to simulate real-world attacks from external hackers.
Gray Box Testing	A mix of white box and black box testing. Testers are given partial system information to focus on specific threats.
Testing Based on Attack Origin	External Penetration Testing	Testers probe for weaknesses in a company's external-facing systems like websites, web applications, and networks.
Internal Penetration Testing	Testers simulate attacks internally to identify vulnerabilities within the company’s internal infrastructure.
Testing Based on System Types	Logical Systems	Involves testing networks and IT infrastructure.
Physical Systems	Entails testing access controls, surveillance systems, and physical barriers.
Social Systems	Involves assessing the effectiveness of employee training.
Other Types of Penetration Testing	Blind Penetration Testing	Testers have even less system information, simulating a real-world attack where hackers have limited target knowledge.
Double-Blind Penetration Testing	Highly secretive test. Neither the tester nor the organization being tested is aware of each other's activities.
Targeted Penetration Testing	The tester and the organization collaborate to focus on specific areas of the IT system.

Penetration Testing Service Models

Penetration Testing as a Service (PTaaS) allows organizations to engage external experts for vulnerability assessments, providing a scalable and cost-effective alternative to maintaining a full-time in-house team. The ideal service model depends on an organization's security maturity, budget, and desired testing cadence.

Exhibit 19: Understanding the penetration testing service models is key to selecting the engagement structure that best aligns with an organization’s security goals and operational needs.

Pentesting Service Models	Description
Subscription-Based	A long-term engagement where a provider conducts regular, scheduled penetration tests over a predetermined period (e.g., quarterly or annually), ensuring continuous security validation.
On-Demand	Provides maximum flexibility, allowing organizations to purchase individual tests as needed with no long-term commitment. Ideal for ad-hoc assessments or testing specific system changes.
Project-Based	Engages a provider for a single, well-defined project with a clear start and end date, such as testing a new application before its launch. The scope and cost are fixed for the specific initiative.
Hybrid	Combines the consistency of a subscription for critical assets with the flexibility of on-demand services for new projects or specific needs.
Managed Services	An end-to-end approach where the provider extends beyond testing to manage aspects of the client's overall security program, often including vulnerability management and remediation support.
Staff Augmentation	Integrates one or more external specialists directly into the client’s in-house security team for a specific duration. This model is used to fill skill gaps or add expertise for a particular project.
